PIPE SUPPORT
Variable Pipe Hangers
Constant Pipe Hangers

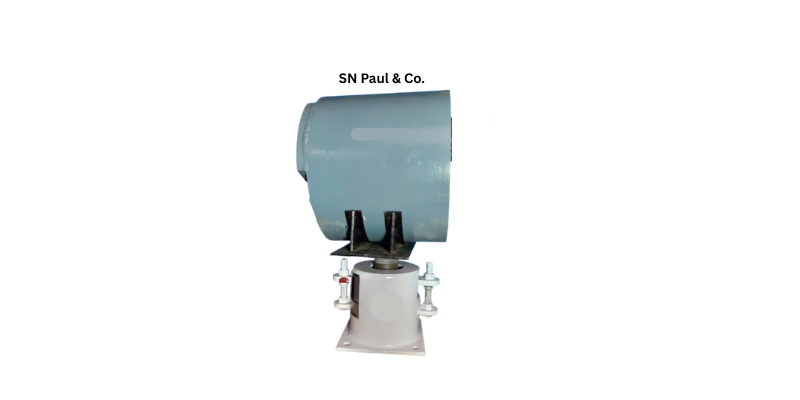

Base Mounted Supports
Our engineered pipeline support components provide robust multi-axial strain alleviation across high-energy processing installations. We specialize in custom-calibrated variable and constant load assemblies designed to mitigate severe thermal displacements.
S.N. Paul & Co. manufactures and supplies a comprehensive portfolio of rigid and flexible industrial suspension hardware. Built strictly to international standards, our assemblies handle heavy mechanical stresses and safeguard critical plant equipment.
Types Of PIPE SUPPORT We Manufacture
Our industrial support hardware layouts are broadly categorized into two distinct engineering configurations based on your system's vertical deflection tolerances:
1. Variable Spring Hangers (Variable Effort Supports) Manufacturer
We manufacture an exhaustive line of Variable Spring Supports designed specifically for piping systems subject to vertical thermal movement. Built with heavy-duty helical coil steel springs housed within rigid cylindrical steel casings, these systems provide a supporting force that varies linearly with pipeline deflection.
Manufactured For (How It Is Used):
As target pipelines undergo thermal expansion or contraction, the moving system pushes or pulls directly against an internal coiled steel spring cage. The assembly adjusts its load capacity dynamically, varying linearly according to the configured spring constant formula ($F = k \cdot \Delta x$).
To preserve plant security, these assemblies are used to keep vertical load variances strictly under 25% across the entire expansion track. This limits severe weight transfers onto adjacent structural framework, matching layout frameworks with low thermal travel trends—typically under 50 mm.

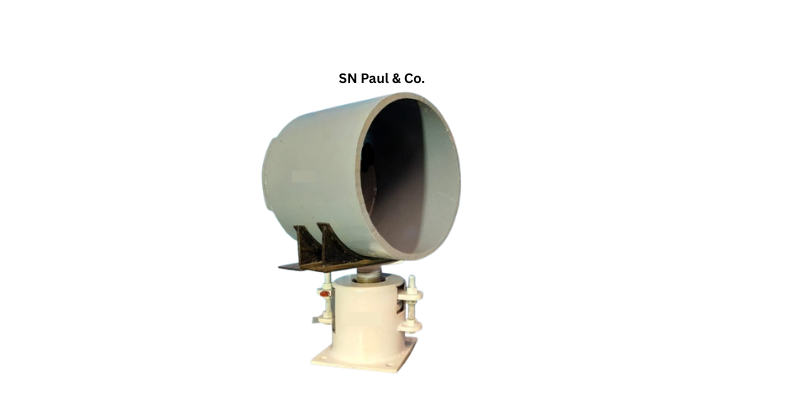

2. Constant Spring Hangers (Constant Effort Supports) Manufacturer
For high-temperature applications requiring absolute uniformity in supporting forces, we manufacture Constant Effort Pipe Supports. These systems integrate a calibrated balancing cam lever mechanism that works against high-performance compression springs to counter dynamic thermal expansions.
Manufactured For (How It Is Used):
When high-pressure systems experience large vertical movements, standard variable units cannot be used due to high load variations. Instead, these constant assemblies use a heavy compression coil linked to an internal rod connection and an rocker arm.
As the pipe displaces, the geometric cam lever dynamically alters its mechanical advantage to adjust the output force of the spring. This balanced action keeps load variation below 6%, preventing stress from transferring to turbine nozzles or pumps.
Various Constant Support Layout Configurations That We Supply
To fit diverse spatial limits and structural steel arrangements, our constant assemblies are engineered in the following configurations:
Supplier Of Type A Configuration
Equipped with a tapped hole top cap for direct overhead rod connection. Fits high headroom installation environments perfectly.
Supplier Of Type B Configuration
Features a single integrated top lug attachment for pinning to building structures. Optimized for minimal overhead clearances.
Supplier Of Type C Configuration
Designed with a double top lug arrangement to attach safely onto structural steelwork. Evenly divides suspension weights over structural joints.
Supplier Of Type D Configuration
Engineered to rest flat directly on top of building beams or structural platforms. Eliminates the need for overhead rod components.
Supplier Of Type E Configuration
Utilizes dual specialized support brackets welded directly onto the outer casing assembly. Allows the constant housing to sit securely across parallel structural beams.
Supplier Of Type F Configuration
Constructed exclusively as a base-mounted support to carry pipelines from beneath. Features a heavy load flange resting on a sliding piston assembly.
Supplier Of Type G Configuration
Assembled with a pair of back-to-back channels to form a dual-rod trapeze frame. Perfect for large-bore pipelines requiring extensive load handling.
Supplier Of Type H Configuration
Engineered with a low-friction horizontal spring housing to save critical vertical headroom. Designed primarily for dense industrial processing layouts.
Supplier Of Type J Configuration
Features an inverted, pendant-style execution utilizing specialized structural layout linkages. Ideal for complex multi-tier rack structures with unique anchor boundaries.
Supplier Of Type K Configuration
An upthrust configuration utilizing specialized reverse-action cam lever elements. Smoothly counters down-load piping displacement trends near major vessels.
Manufacturing PIPE SUPPORT For Industries:
Our heavy-duty industrial pipe support systems are critical infrastructure components utilized across multiple fields to safely maintain stability under extreme pressure and thermal loads:
Thermal Power Stations
These components are crucial for carrying critical main steam piping networks throughout your plant. They safely connect high-temperature lines running from overhead superheaters directly down to turbine intake sets.
Oil Refining & Chemical Complexes
Our supports are engineered for mitigating massive stress fields across complex refinery operations. They handle severe dimensional load fluctuations found within high-temperature distillation cross-conduit lines safely.
Cryogenic & LNG Plants
We provide highly responsive spring assemblies built for balancing thermal contractions in extreme systems. They keep main distribution links fully secured within sub-zero liquid natural gas pipelines.
Water Treatment Facilities
Our specialized systems isolate high-pressure fluid pumping vibration paths from adjoining structural concrete. They neutralize rapid hydraulic pulsations across heavy transport tracks to reliably prevent joint cracking.
