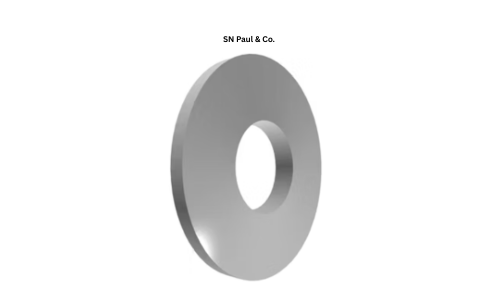

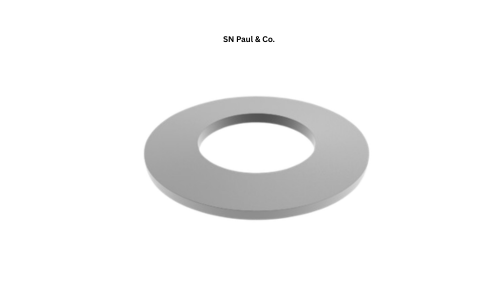

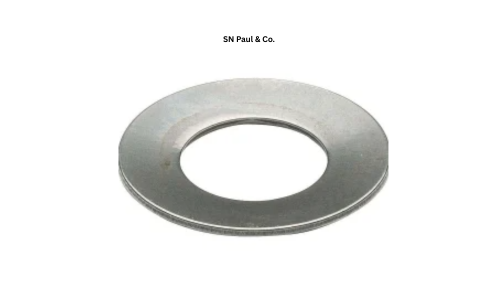

Disc Springs
Our high-capacity Disc Springs, engineered strictly to DIN 2093 guidelines, are conical-shaped annular rings designed to sustain immense axial forces within minimal operational space. Capable of versatile stacking permutations, these robust mechanical elements provide exceptional load-carrying performance under intense vibration profiles.
S.N. Paul & Co. is a premier industrial manufacturing firm specializing in engineering high-resilience components for heavy machinery and infrastructure. With decades of industrial manufacturing expertise, we deliver precision-crafted mechanical solutions that meet international standards for durability and performance.
Disc Spring Manufacturer
Disc springs can be layered in series, parallel, or specialized combination setups to create highly custom deflection curves and force ceilings. Because our Belleville units are custom stamped and fine-machined, users can specify precise thickness boundaries and inner-to-outer diameter ratios.
Here we furnish our maximum manufacturing capacity details for custom industrial Disc Springs:
- Material Thickness: Advanced stampings engineered from 0.2 mm up to 40 mm.
- Outer Diameter (OD): Sized from tight 6 mm rings up to a large-scale 600 mm profile.
- Standards Compliance: Manufactured and heat-treated fully to DIN 2092 and DIN 2093 guidelines.
- Stacking Flexibility: Fully customizable for parallel nested nesting, series facing configuration, or combined clusters.
- Surface Finish Options: Phosphated, zinc-plated, mechanical plating, or high-durability Geomet coatings for chemical protection.
- Raw Materials: High-grade carbon spring steels (51CrV4 / DIN 1.8159), Stainless Steel grades (SUS301 / SUS631), and heavy-duty Inconel/Monel alloys.
Understanding Disc Spring Mechanics That We Manufacture
A Disc Spring, frequently designated as a Belleville washer, is a conical, washer-shaped component that functions as a spring along its linear axial axis. Unlike a standard spiral coil wire unit that stores energy over a long spiral length, a disc spring concentrates load parameters across its specialized flat conical geometry. When an external compressive load is pressed down onto the peak edge, the washer flattens dynamically, generating high load-bearing resistance.
The standout feature of this system is its extreme load capacity relative to its minute physical travel envelope. A single disc can manage loading forces that would immediately crush or deform traditional coil layouts. This makes them indispensable in high-torque heavy-machinery assemblies, structural bolt joints, and terminal valve packs where large mechanical loads must be sustained within compact structural clearances.
Internal Variation: Performance Tuning via Custom Stacking That We Supply
The primary advantage of utilizing a disc spring configuration over other spring styles lies in the capacity to completely transform force accumulation curves without altering the individual part dimensions, achieved by modifying stacking orientation:
1. Series Stacking (Opposing Directions) Supplier
When discs are grouped facing away from one another (top rim against top rim, base against base), they operate in a series path. In this setup, the total displacement scale increases linearly with each added washer, while the load resistance remains equal to that of a single washer. This is ideal for applications needing longer travel distances within tight diameter clearances.
2. Parallel Stacking (Nested Nesting) Supplier
When the conical washers are nested closely together facing the same directional orientation, they operate in a parallel layout. Here, the displacement path remains equal to that of a single washer, but the load resistance multiplies directly by the number of discs added. This configuration is utilized when massive load capacities are needed within near-zero stroke bounds.
3. Combination Systems (Specialized Matrix) Supplier
By interlocking both parallel packets and series lines into a single column, engineers can build highly tailored, progressive load-deflection profiles. This setup enables equipment to deliver light resistance during initial alignment before engaging extreme structural load-holding thresholds during heavy mechanical loading surges.
Ensures Key Applications & High-Stress Durability While Manufacturing
Our custom industrial Disc Springs are optimized for critical torque-retention and impact absorption roles, including:
- Heavy Structural Bolt Isolation: Placed under anchor nuts on large pipelines and bridges to compensate for bolt-stretch caused by constant thermal expansion cycles.
- Industrial Brake Release Mechanisms: Serving as the main energy storage packs inside heavy crane safety brakes and wind turbine rotor clamping modules.
- Overload Clutches and Torque Limiters: Supplying constant high-pressure face loading onto friction slip discs inside industrial power transmission lines.
- High-Pressure Valve Seals: Preserving uniform packing seal force inside automated pipeline control valves in chemical processing plants.
Disc Spring Price Structure
The pricing for Disc Springs is calculated per production run based on outer ring volume, alloy metrics, and precision surface treatments, spanning across two pricing tiers:
- Standard Mechanical Washers (DIN 2093): Engineered for mid-tier valve setups and general manufacturing gear, built from reliable Carbon Spring Steel. Pricing spans from ₹ 150 to ₹ 1,200 per piece depending on OD dimensions.
- Heavy-Duty Alloy Space-Saver Discs: Precision-machined from premium 51CrV4 or Stainless Steel to sustain extreme tonnages within stamping machinery or automated press frames. Price loops from ₹ 2,200 to ₹ 14,000+ per piece.
